A 2°C error on a single Dust Explosion Prevention in Grain Storage Facilities: En... temperature cable reading is not a rounding problem — it is an aeration decision made on false data. In a 500,000-bushel corn bin, that decision can cost tens of thousands of dollars in shrink, quality downgrades, and emergency reconditioning. Calibration is the discipline that keeps your temperature monitoring system honest.

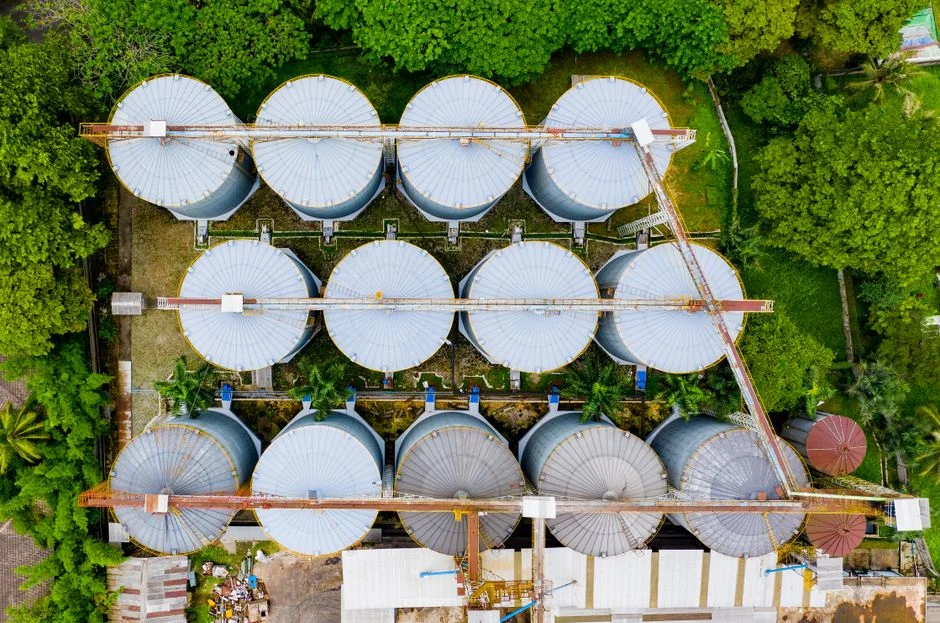

Temperature Monitoring Calibration in Grain Storage: Why a 2°C Error Can Empty a Bin
Dust Explosion Prevention in Grain Storage Facilities: En... is an excellent thermal insulator. Bulk wheat, corn, and soybean conduct heat at roughly 0.12–0.16 W/m·K, which means a hot spot 3 meters inside the Grain Bin Foundation Settlement: Prevention and Remediati... mass may take weeks to reveal itself at the nearest sensor. Your entire early-warning capability rests on the assumption that every thermocouple, RTD, or thermistor in the cable is reading the true temperature of the grain touching it.
That assumption degrades silently. Sensor junctions oxidize, moisture migrates into cable splices, extension wire is accidentally swapped with the wrong alloy, and reference junctions drift with ambient conditions in the control panel. None of these failures announce themselves. They simply produce a number that looks plausible and is wrong.
Consider the consequence chain. Aeration controllers and stored-grain management software typically trigger fan cycles when a sensor exceeds a threshold — often 20–25°C for long-term storage, or when a temperature differential of 5–8°C exists between the grain mass and ambient air. If a sensor reads 2°C low, the controller may hold fans idle for days past the correct intervention window. If it reads 2°C high, you burn energy and shrink moisture unnecessarily, and you may over-dry the top layer of grain.
How Grain Temperature Sensors Drift: Thermocouple, RTD, and Thermistor Failure Modes Explained
Different sensing technologies fail in different ways, and understanding the mechanism tells you how often to calibrate and what to look for in the data.
Thermocouples: Alloy Migration and Cold Junction Errors
Type T (copper-constantan) and Type K (chromel-alumel) thermocouples dominate grain cable construction because they are cheap, rugged, and can be pulled through flexible conduit. They are also the least stable. Above roughly 100°C, Type K undergoes short-range ordering that produces a characteristic drift of 1–3°C; grain bins rarely reach that temperature, but the same alloys oxidize at grain-level temperatures over years of service. More importantly, any moisture ingress into a splice creates a parasitic thermocouple junction that adds an unknown offset.
Copper-constantan is more stable in the grain storage range, but copper extension wire is easily confused with ordinary signal wire during repairs. A single mis-wired terminal block introduces an error proportional to the temperature difference between the block and the reference junction — commonly 0.5–2°C.
RTDs: Lead Resistance and Element Contamination
Platinum RTDs (Pt100, Pt1000) are the most accurate option for grain applications and are increasingly specified for new installations. Their failure modes are electrical rather than metallurgical: two-wire RTDs add lead resistance directly to the measurement, and a 0.4 Ω lead resistance on a Pt100 translates to approximately 1°C of error. Three-wire compensation reduces this substantially, and four-wire eliminates it entirely — but only if the transmitter is configured for the correct wiring scheme.
Thermistors: Aging and Self-Heating
Negative temperature coefficient thermistors offer excellent resolution and low cost, but their resistance-temperature curve shifts with thermal aging. A typical drift of 0.1–0.2°C per year sounds trivial until you accumulate five years of service. Thermistors also self-heat if the excitation current is too high, and because they are often potted into small stainless probes with limited heat dissipation, self-heating error of 0.3–0.5°C is common in poorly designed circuits.
Digital Bus Sensors and Transmitters
Digital sensors move the analog-to-digital conversion to the probe, eliminating lead resistance and cold junction errors. Their remaining vulnerabilities are firmware offset drift, calibration coefficients stored in volatile memory, and — critically — the assumption that because the output is digital, it must be correct. A digital sensor with a corrupted offset register will report a clean, stable, confidently wrong number.
| Sensor Type | Typical Annual Drift | Dominant Failure Mode | Recommended Verification Interval |
|---|---|---|---|
| Type T thermocouple | 0.3–1.0°C | Moisture ingress, alloy oxidation | 6 months |
| Type K thermocouple | 0.5–3.0°C | Alloy ordering, splice corrosion | 6 months |
| Pt100 RTD (4-wire) | 0.05–0.2°C | Element contamination, wiring error | 12 months |
| NTC thermistor | 0.1–0.3°C | Thermal aging, self-heating | 12 months |
| Digital bus sensor | 0.1–0.5°C | Coefficient corruption, firmware offset | 12 months |
The Hidden Cost of Uncalibrated Sensors: Aeration Decisions, Shrink Loss, and Spoilage Risk
The cost of calibration is easy to quantify. The cost of not calibrating is diffuse, which is precisely why it gets deferred — and why it eventually shows up as a single catastrophic line item.
Start with shrink. A 500,000-bushel corn bin at $4.50/bu holds $2.25 million of inventory. A 0.5% shrink event caused by unnecessary aeration of dry grain is $11,250. A 1% moisture over-dry is $22,500. These losses accumulate quietly across every bin, every season.
Now consider spoilage. A hot spot that goes undetected for two weeks because the nearest sensor reads 2°C low can progress from a localized 30°C pocket to visible mold and caking across several hundred bushels. The direct loss is the discounted value of the affected grain. The indirect cost includes bin cleaning, downtime, potential mycotoxin testing, and — in food-grade supply chains — rejection of the entire lot.
Finally, there is the energy and equipment cost. Fans run longer than necessary when sensors read high. Motors and bearings wear. Peak-demand electrical charges rise. None of this appears on a maintenance report, but it is real money.
Calibration vs. Verification vs. Validation: Getting the Terminology Right Before You Touch a Probe
These three terms are used interchangeably in farm and elevator conversations, and that misuse causes real problems in audits, warranty claims, and insurance disputes.
Calibration
Calibration is the comparison of an instrument's output against a reference standard of known, traceable accuracy, and the documentation of the deviation. Note what is missing: adjustment. A calibration can — and often should — be performed without changing a single setting. The output is an as-found deviation report.
Verification
Verification is a pass/fail check against a defined tolerance. You verify a sensor to ±0.5°C at three points. If it passes, you return it to service. Verification is cheaper and faster than full calibration and is appropriate for routine in-season checks.
Validation
Validation confirms that the measurement system is fit for its intended purpose in its actual installed configuration. A sensor can be perfectly calibrated on the bench and still fail validation if the cable routing, transmitter scaling, or controller input configuration introduces error. Validation is a system-level activity, not a sensor-level one.
Adjustment
Adjustment is the physical or digital correction applied to bring a sensor into tolerance. Adjustments must always be recorded, with as-found and as-left data, because the as-found value is the diagnostic information that reveals whether you have a random error or a systematic problem.
Reference Standards That Actually Work: Ice Bath, Dry Block, and Certified Reference Probe Methods
Field calibration is a compromise between metrological rigor and practical reality. The following methods are ranked by achievable uncertainty.
| Method | Achievable Uncertainty | Best Application | Limitations |
|---|---|---|---|
| Ice bath (slush, not cubes) | ±0.05°C | Zero-point verification | Single point; requires distilled water and proper drainage |
| Dry block calibrator | ±0.1–0.3°C | Multipoint probe checks | Axial gradient; requires adequate insertion depth |
| Certified reference thermometer in stirred bath | ±0.02–0.1°C | Full multipoint calibration | Laboratory method; probes must be removed |
| Comparison against a calibrated in-situ reference probe | ±0.2–0.5°C | Installed cable verification | Reference probe must be co-located with grain |
For grain storage field work, the practical standard is a two-tier approach: a certified reference thermometer with current ISO/IEC 17025-accredited calibration for the laboratory or shop bench, and a dry block or stirred bath for multipoint verification at 0°C, 15°C, 25°C, and 35°C — the range that covers real grain conditions from winter aeration to summer hold.
Avoid the common shortcut of using an infrared thermometer as a reference. Emissivity variation across grain surfaces, dust, and probe hardware makes IR measurements unreliable by several degrees.
Step-by-Step Field Calibration Procedure for Grain Bin Temperature Cables and Sweep Sensors
1. Preparation and Isolation
Record the as-found readings for every sensor channel before touching anything. Photograph the controller display or export the data log. De-energize the aeration system and lock it out. Confirm that the bin has been out of aeration for at least 30 minutes so that grain temperature has stabilized.
2. Reference Setup
Set up your dry block calibrator with a certified reference probe inserted to the correct immersion depth. Allow 20–30 minutes for thermal stabilization. Verify the ice point of your reference probe if it has been more than 12 months since its last accredited calibration.
3. Probe Extraction and Conditioning
Where cable design allows, disconnect the sensor at the junction box and bring the probe to the reference. Where sensors are permanently embedded, use a comparison method: lower a calibrated reference probe into the bin through a sample port at the same depth as the target sensor and allow 45–60 minutes for thermal equilibrium in still grain.
4. Multipoint Measurement
Measure at four points across the operating range. Record the reference value, the sensor value, and the deviation at each point. A sensor with a consistent offset across all points needs an offset correction; a sensor with a non-linear deviation has a failing element and should be replaced, not adjusted.
5. Adjustment and As-Left Verification
Apply offset corrections at the controller or transmitter. Re-measure at all points to confirm the as-left condition. Any sensor that cannot be brought within ±0.5°C at all points should be flagged for replacement.
6. Restoration and Baseline
Return the system to service, verify
